Label Applicators

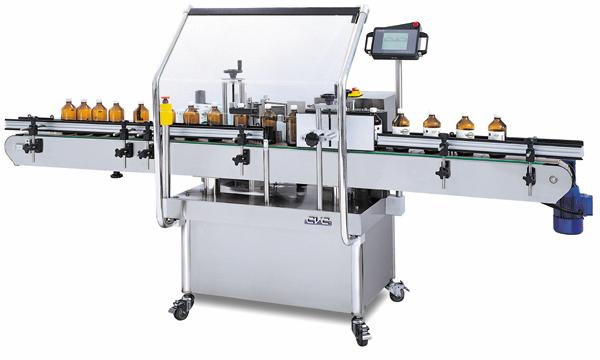

CVC 302 Vision and Wrap-Around Labeler with SelfSet™ - THE HAWK™ Vision System (Optional)

The CVC integrated HAWK Vision System provides on line verification of barcodes, label size, and code data.

The Talking Labeler™

  • The operator may choose to receive instruction, voice and LCD, in English, Spanish or Chinese languages. Nothing could be easier.

    PC Compatible

  • PC compatible for monitoring production data and for field diagnostic analysis.
  • CVC service department provides assistance and expertise for machine diagnostics and trouble shooting through net servo.

    CVC 302 High Speed Production

  • The Servo Motor Drive delivers reliability and endurance, with label dispensing speed up to 2,800 inches per minute.
  • Labeling accuracy is ± 1/32".
  • 7 RISC CPU's are used to provide state-of-the-art signal speed and electronic stability.
  • Use of RS485 signal transmission technology uses only two wires to transmit more than 30 signals such as label sensor, hot stamper, bar code reader, etc. (30 wires are needed for labeler use with regular signal transmission.

    CVC 302 Technical Specifications
    Feature CVC 302
    Label Width (Max.) 6" - 7 1/16" - 8 11/16"
    Label Length 1/2 - 10"
    Product Diameter 1/2 - 5"
    Reel Inner Core (Dia.) 3"
    Reel Outer (Dia.) 16 1/4"
    Labeling Speed 50-450
    Machine Dimensions (L x W) 118" x 39 3/4"
    Height Range 54 1/2" - 65"
    Power Source 220V/50/60Hz/1 Phase
    Power Consumption 5 Amps
    Hot Stamp Printer   300 Impressions per minute
