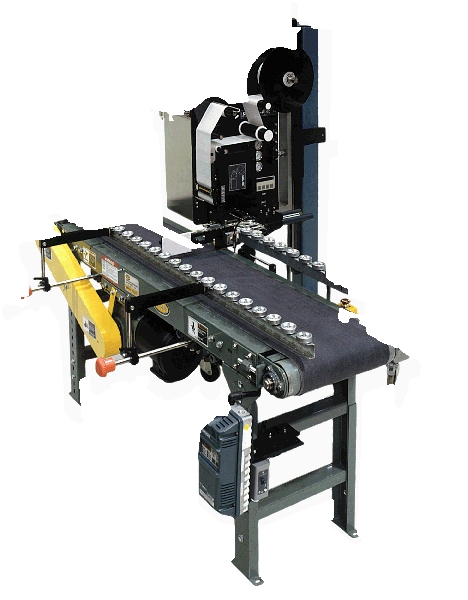

2138 Dual Action Tamp

The Model 2138 Dual Action Tamp Printer Applicator thermal transfer or direct transfer imprints and applies labels utilizing tamp-blow or tamp-on application techniques. The dual action, air cylinder operated tamp rotates 90 degrees across the conveyor to apply the front label. As the product proceeds, the second straight-line stroke extends using the same cylinder to apply the side panel label. One-to-one print and apply allows for the immediate application of each label as it is printed.  Four configurations allow labeling front and either side or trailing panel and either side.

Specs:

• Dimensions: Height: 36” (914 mm), Width: 32.5” (826 mm), Length: 25.75” (654 mm)

• Weight: 165 lbs. (75 kg) not including the printer

• Standard Label Dimensions: Label Width: Up to 7” (178 mm), Label Length: Up to 6” (152 mm)

• Dispense Speed: Up to 12” (305 mm) per second depending on printer and label size

• Label Placement Accuracy: Up to +/- 1/32" (0.8 mm)

• Electrical: 115 Volts AC 60 Hz 5 Amps., 220 Volts AC 50 Hz

• Air (as needed): 4 cfm at 60 psi for most applications

• Printers: Available with Zebra, Sato, or Datamax print engines
